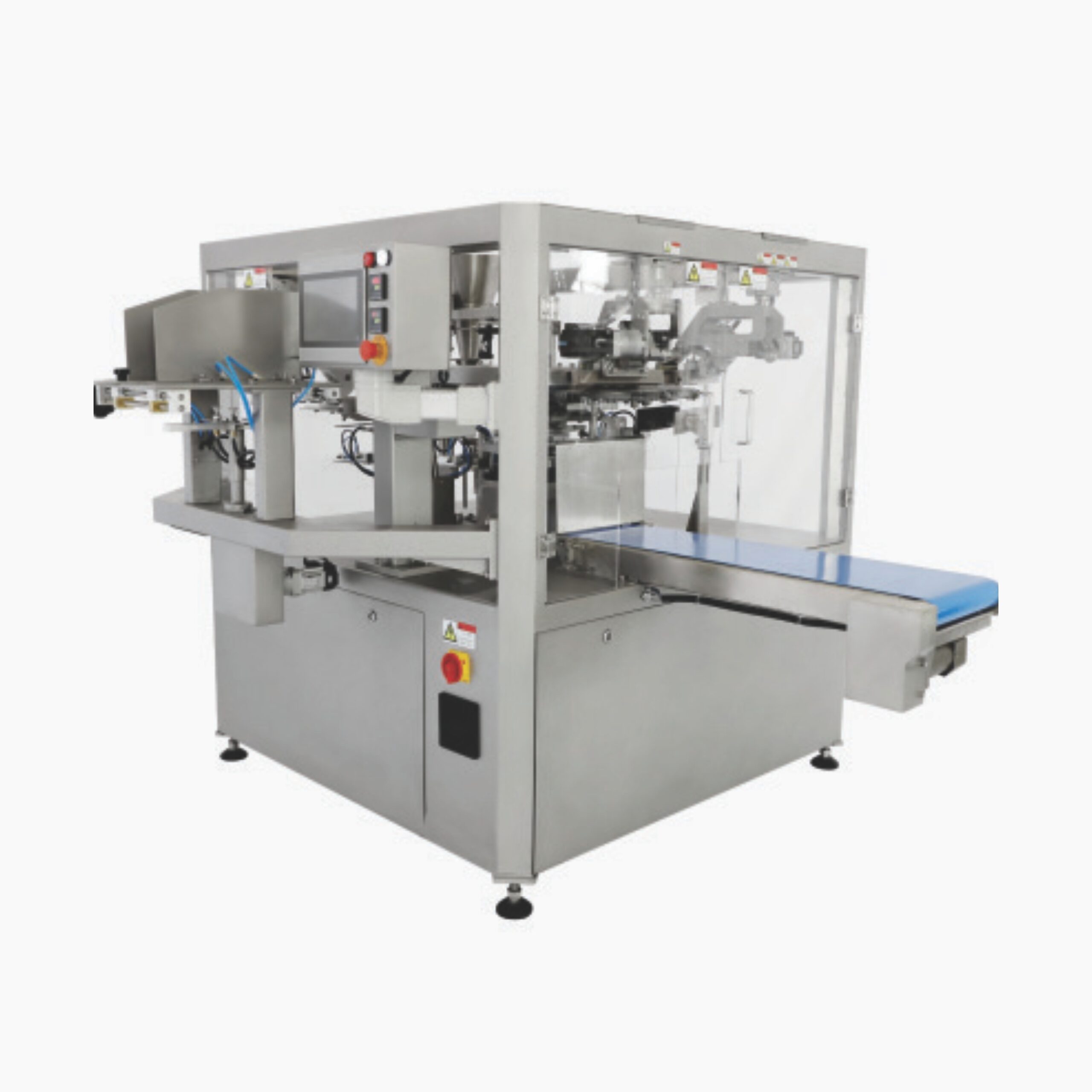

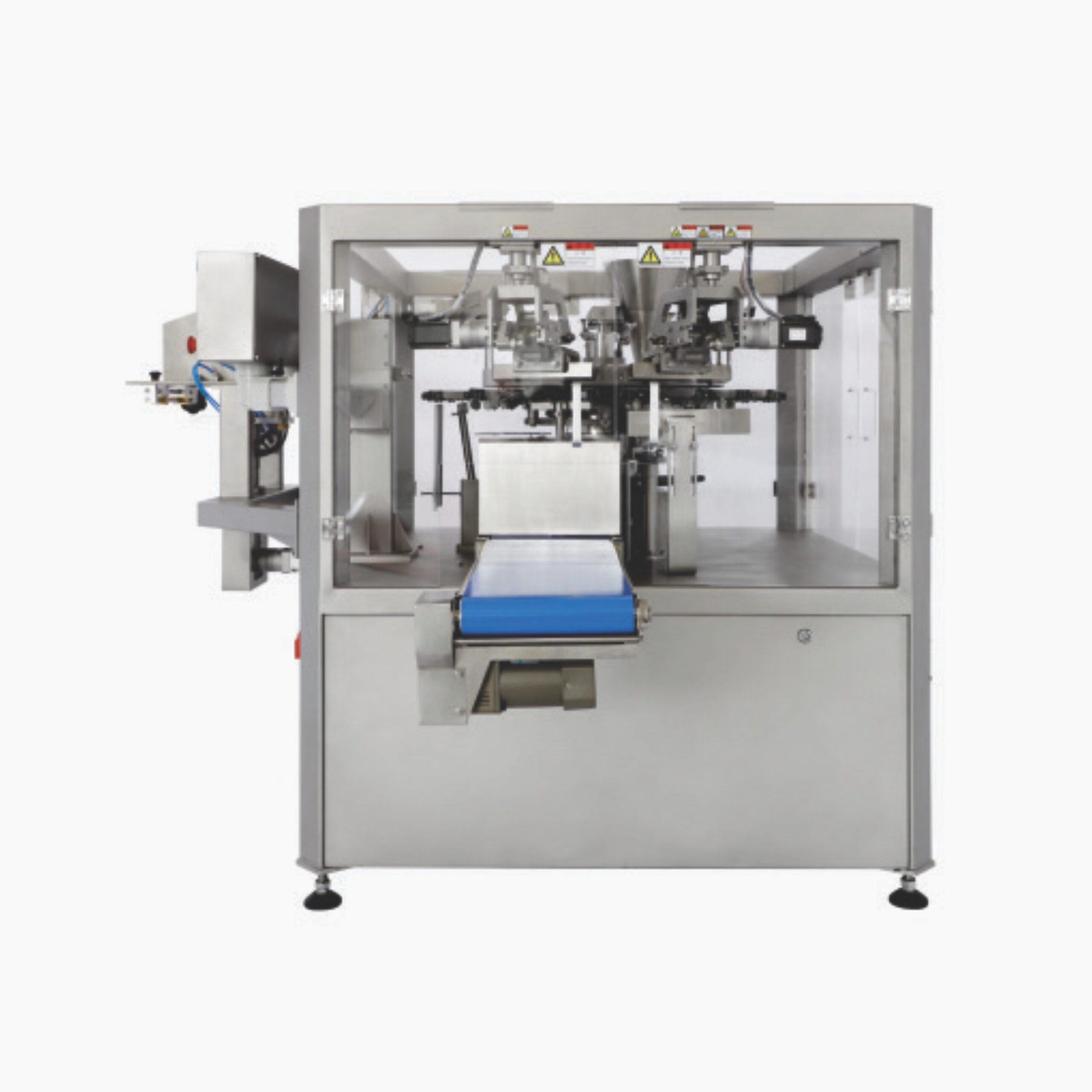

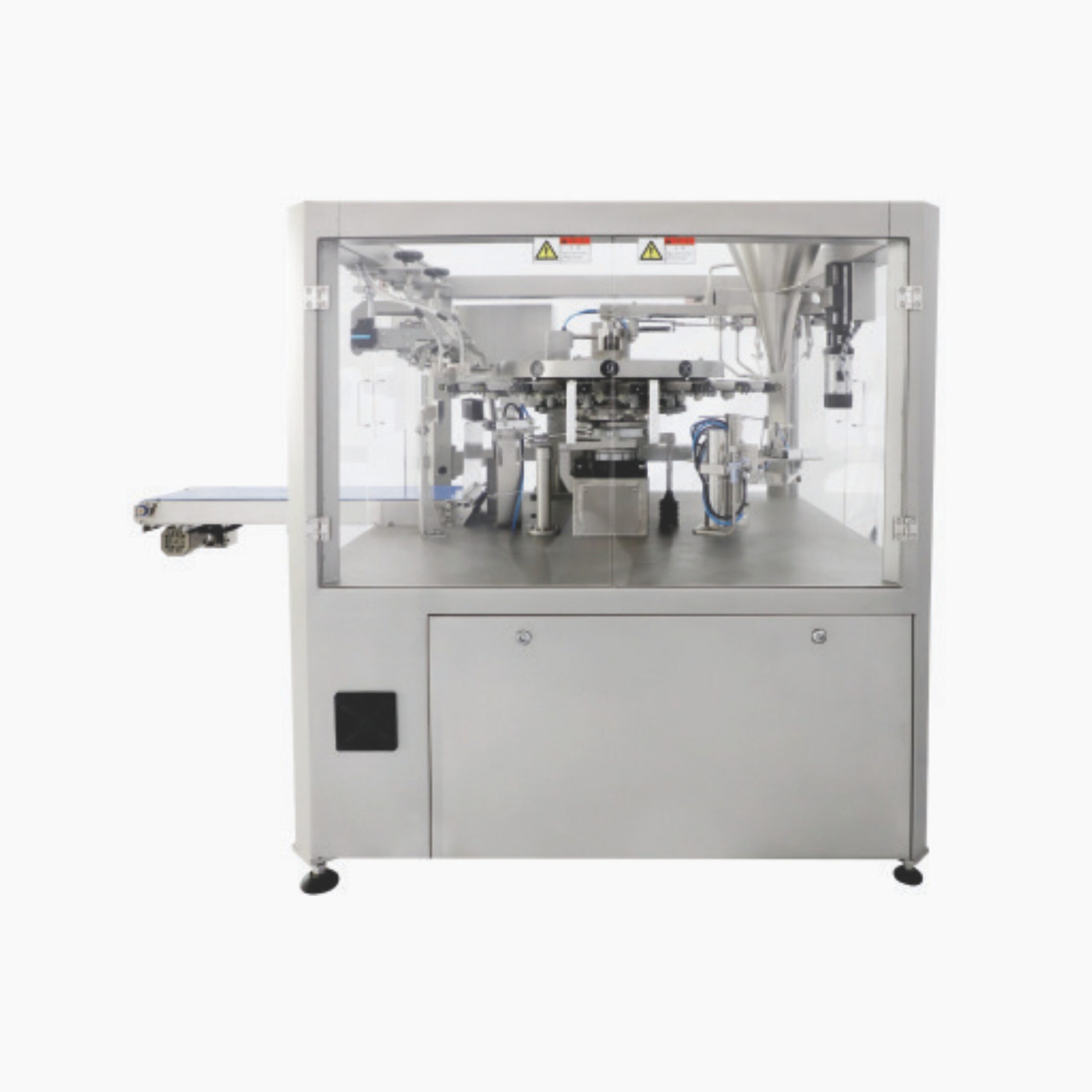

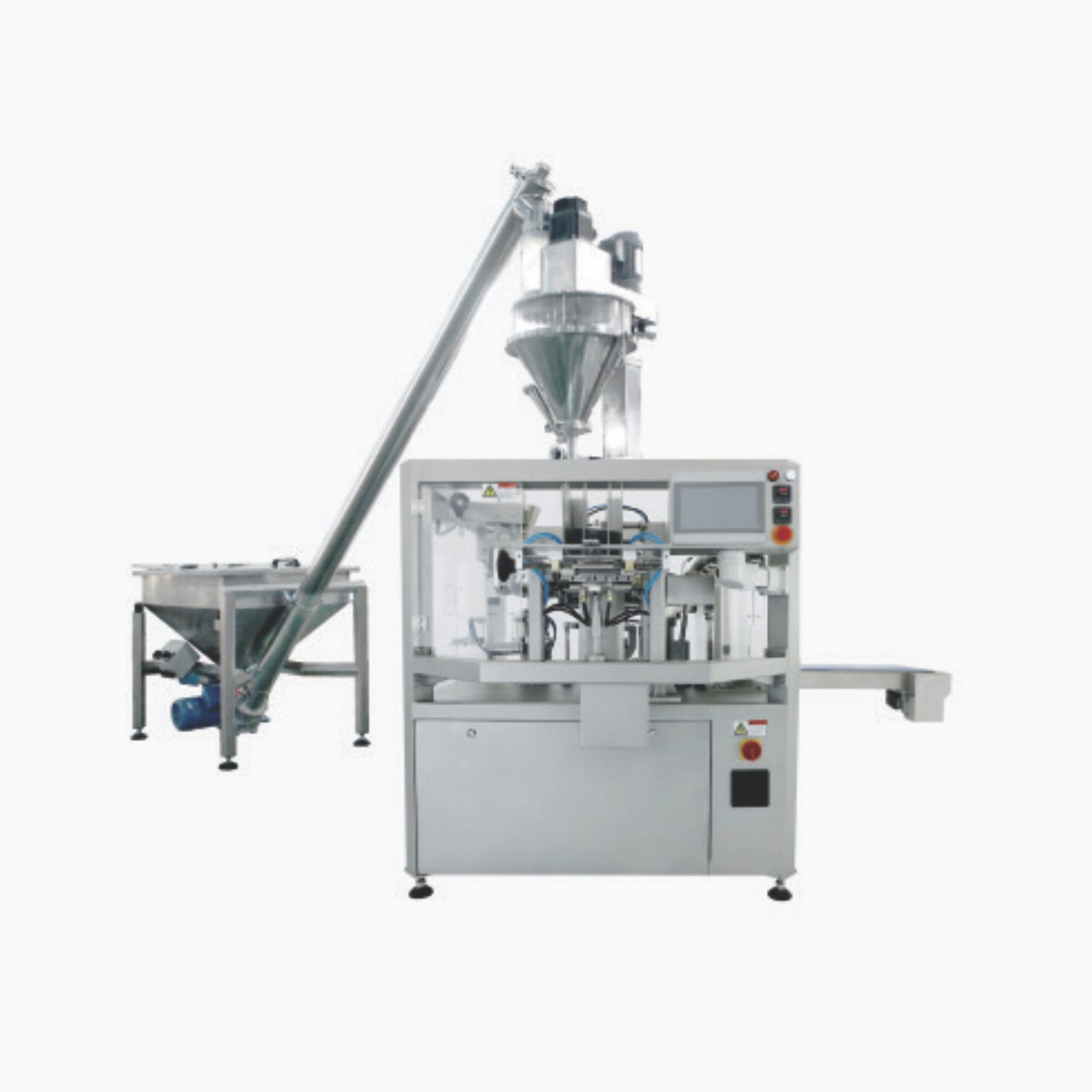

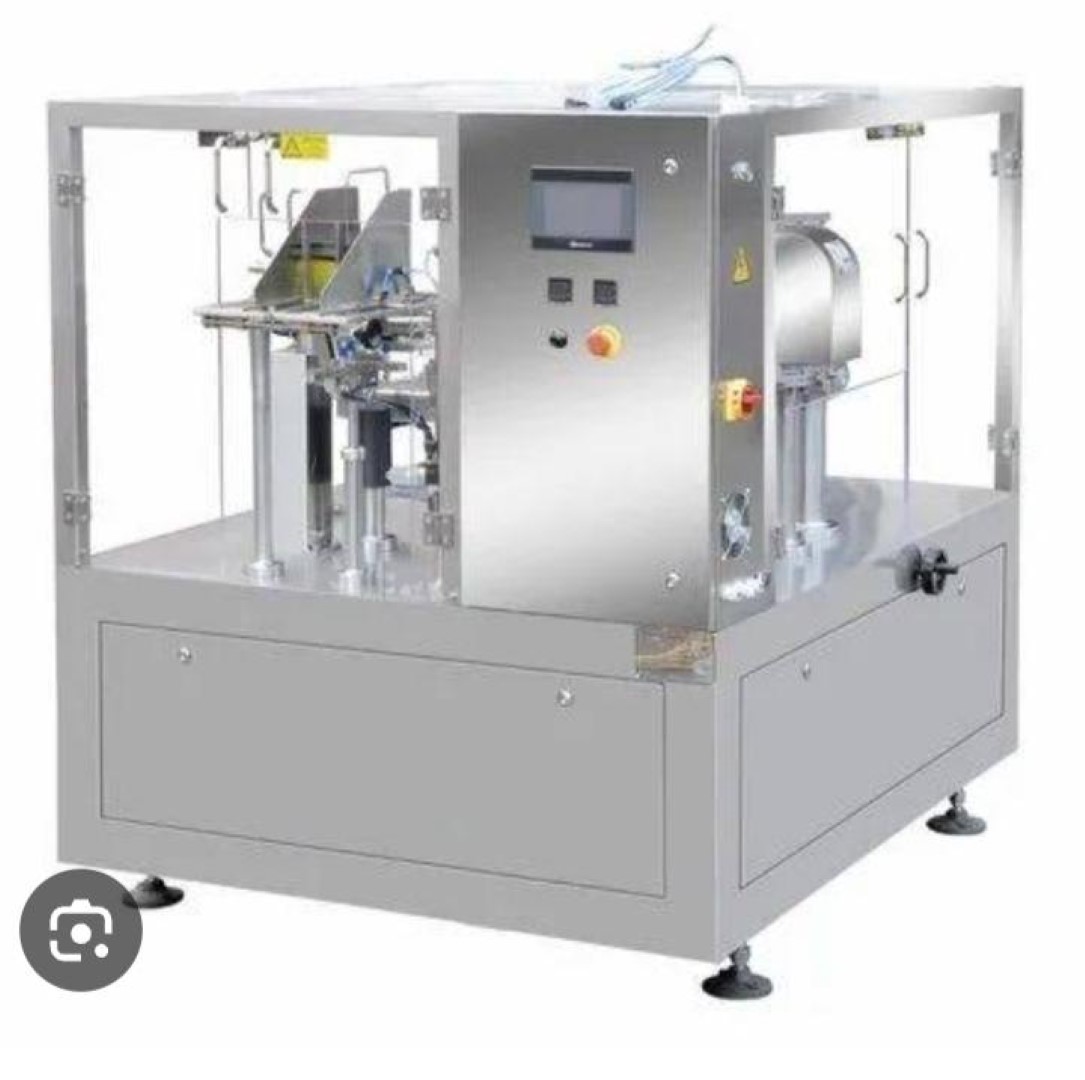

A pick fill seal (PFS) machine is a packaging machine that picks, fills , seals and prepares pre – formed , zipper pouches or bags for distribution.
PFS machines are used in many industries, including food and beverage, pharmaceuticals, cosmetics etc. It can handle type of products like powders, granules, liquids, and pastes, and can be used with different pouch sizes and shapes.

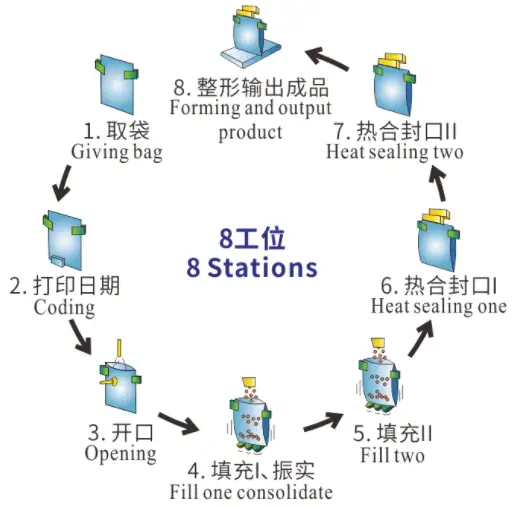

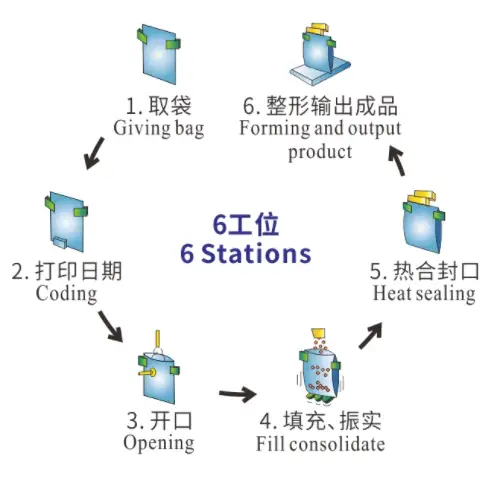

HOW PICK FILL SEAL MACHINE WORKS.
Pick and Place Mechanism: Precisely picks up and positions pouches for filling. Filling System: Dispenses the product into the pouch accurately and efficiently. Sealing System: Creates a secure and airtight seal on the filled pouch. Conveyor System: Transports pouches through the machine.
Technical Specifications
| Model | FP-180-06 | FP-210-08 | FP-260-08 | FP-300-08 | FP-350-08 | FP-420-06 |
| Packing Type | Premade bags (flat bags , Doypack ) | Premade bags (flat bags , Stand up bags , zipper bags ,M type bags etc. ) | Premade bags (flat bags , Stand up bags , zipper bags ,M type bags etc. ) | Premade bags (flat bags , Stand up bags , zipper bags ,M type bags etc. ) | Premade bags (flat bags , Stand up bags , zipper bags ,M type bags etc. ) | Premade bags (flat bags , Stand up bags etc. ) |
| Average Speed | Upto 60P/m | Upto 60P/m | Upto 60P/m | Upto 60P/m | Upto 60P/m | 30P/M |
| Bag Size | L-260 mm, W- 70-180 mm | L-360mm, W- 90-210mm | L-500mm, W- 130-260mm | L-500mm, W- 160-300mm | L-500mm, W- 230-350mm | L-720mm, W- 280-420mm |
| Compressed Air quantity | 6kg /cm' 0.4 m/min | 6kg /cm' 0.4 m/min | 6kg /cm' 0.4 m/min | 6kg /cm' 0.4 m/min | 6kg /cm' 0.4 m/min | 6kg /cm' 0.4 m/min |
| Machine Gross weight | 400KG | 600 KG | 580 KG | 600 KG | 700 KG | 800 KG |
| Station | 6 station | 8 station | 8 station | 8 station | 8 station | 6 station |
| Power Type | 380V 8KW | 380V 8KW | 380V 8KW | 380V 8KW | 380V 8KW | 380V 8KW |
| Dimension | 1550*1250*1150mm | 1900*1340*1520mm | 1800*1670*1400mm | 2100*1880*1400mm | 2350*1950*1400mm | 2400*2000*1450mm |
