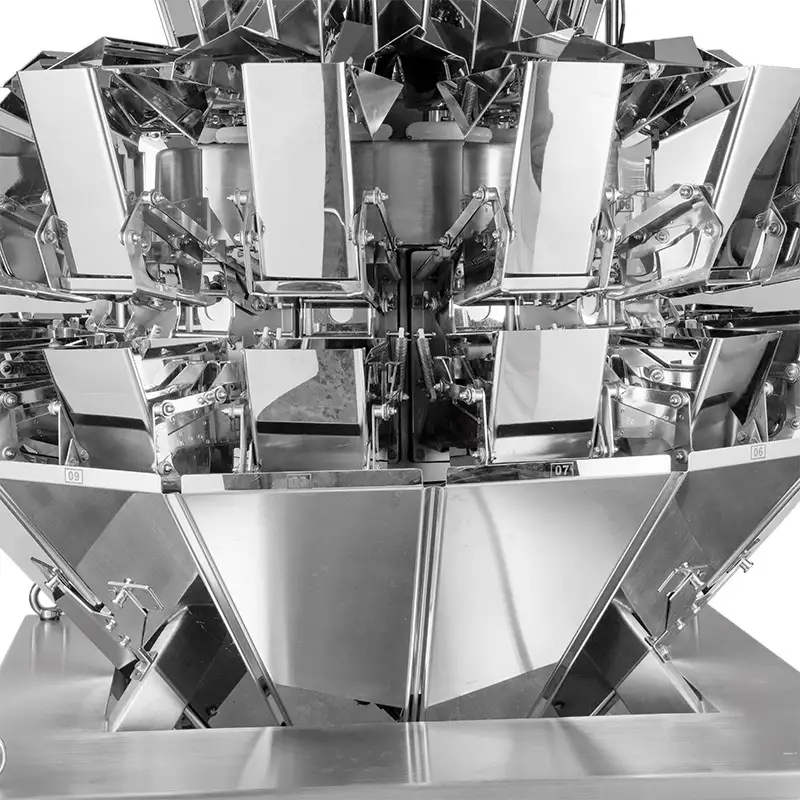

14 Head Leak Proof Multihead Weigher With 3L Hoppers

It is suitable for high-requirement leak-proof quantitative weighing of small particles such as salt, sugar, millet, seeds, monosodium glutamate, chicken essence, coffee beans, etc.

Features:

  1. Store 100 sets of parameter settings, realize a variety of material requirements, help menus, and facilitate learning and use.
  2.  Multiple languages are available, easy to operate, and suitable for the global market.
Mechanical  Character:
  1. Use a special sensor with high precision and high standard resolution.
  2. The special deep U-shaped vibrating plate avoids material leakage to both sides of the vibrating plate.

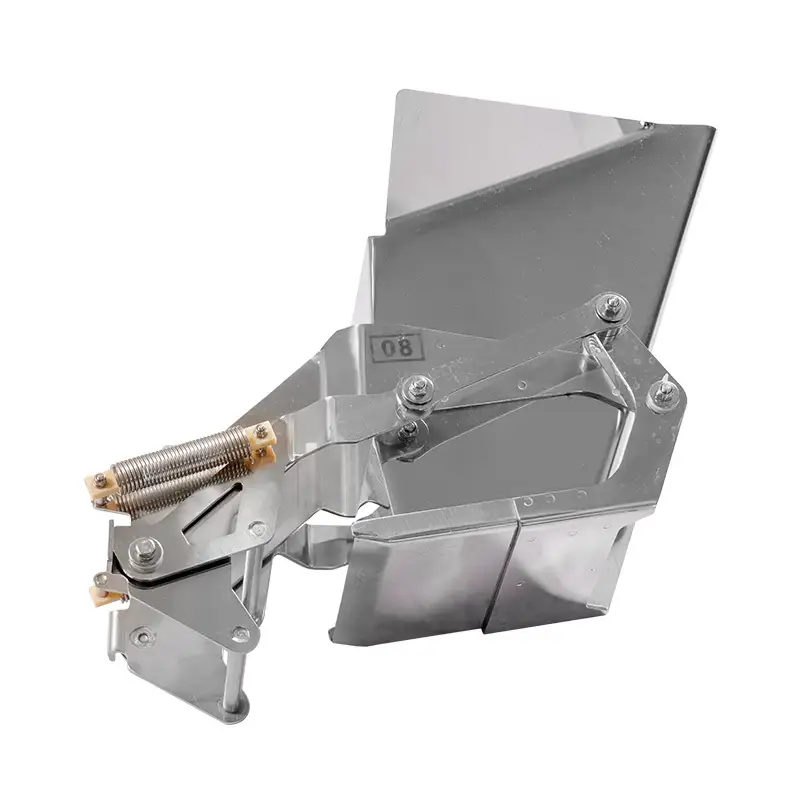

  3. Specially made 3.0L hopper, with a leak-proof design, suitable for fine materials, with higher weighing accuracy.
  4. The thickened overall middle seat of cast aluminum enhances the strength of the machine, and the stable time of weighing is shorter.
Read More

Technical Specifications

Model JW-A14
Identify Code A14-1-21
  Weighing Range 10-1500g
Accuracy X(0.5)
 Max Speed 120P/M
Hopper Volume 3.0 L
Control Panel 7”Touch Screen
Options Dimple Plate/Timing Hopper/Printer/ Reject Device
 Driving System Step Motor
Power Requirement 220V / 1100W / 50/60Hz / 10A
Packing Dimension (mm) 1700(L)x1100(W)x1265(H)
Gross Weight 490kg
