Servo Auger Filler with Screw Conveyor coller Type Pouch Packing Machine

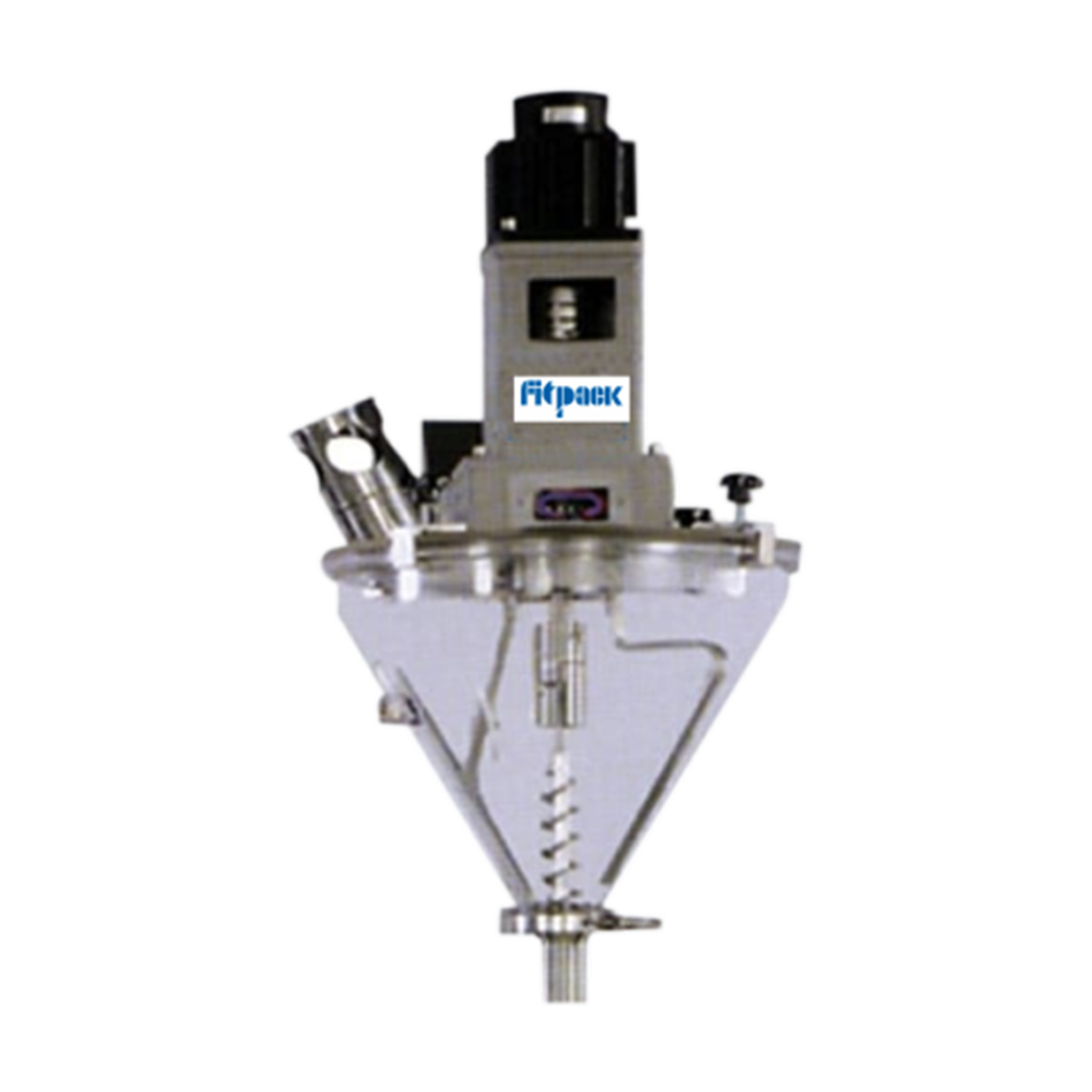

This high-efficiency auger filler system is designed for precise and consistent filling of all types of free-flowing and non-free-flowing powders. Equipped with a screw conveyor, it ensures continuous and uniform powder feeding into the hopper, minimizing downtime and maximizing output. Ideal for industries such as food, pharmaceuticals, chemicals, and agriculture ,spices powder, coffee, powdered beverages, nutritional supplements, and baking mixes.

Key Features:

  1. Accurate dosing with servo or clutch brake auger system
  2. Stainless steel contact parts for hygiene and durability
  3. Integrated screw conveyor for automatic powder feeding
  4. Adjustable fill weights and speeds
  5. Suitable for spices, flour, protein powder, chemicals, and more
  6. Compatible with automatic pouch packing machines



  1. Parts
    Touch screen and PLC: Delta
    Pneumatic: Festo Cylinder on Horizontal sealer
    Janatics on Pulling Panasonic / PNF camera
    SSR : Unison
    Temperature Controller: Multispan
  2. This combination system guarantees speed, accuracy, and cleanliness in powder packaging operations.

Technical Specifications

ModelC30C40C50C60
Model180-300 mm180-400mm220-500 mm300-600 mm
Weight Range50 gm to 1000gm50gm -1000gm50 mg to 1500 mg50 gm to 2000gm
Pouch Length100-250 mm100-300mm100-350100-350 mm
Accuracy+/2 % for non-sticky powders
Speed (Max)80 pouches /min Depend on Product and weight80 pouches /min Depend on Product and weight80 pouches /min Depend on Product and weight80 pouches /min Depend on Product and weight
Sealing SystemTop and bottom is Pneumatic and the centre sealing is through pneumatic cylinder and pulling through Rubber Roller"""
Power Supply220 V Single Phase220 V Single Phase220 V Single Phase220 V Single Phase
Compressed air required5cfm@6bar6CFM @ 6 Bar7CFM @ 6 Bar8CFM @ 6 Bar
Electric consumption1.25 KW1.5 KW2 KW2.5 KW
Machine Dimension45x65x88 Inch.45x65x85 Inch.50x70x90 Inch.60x80x100 Inch.
Machine Weight650 Kg700 Kg750 Kg850 Kg
