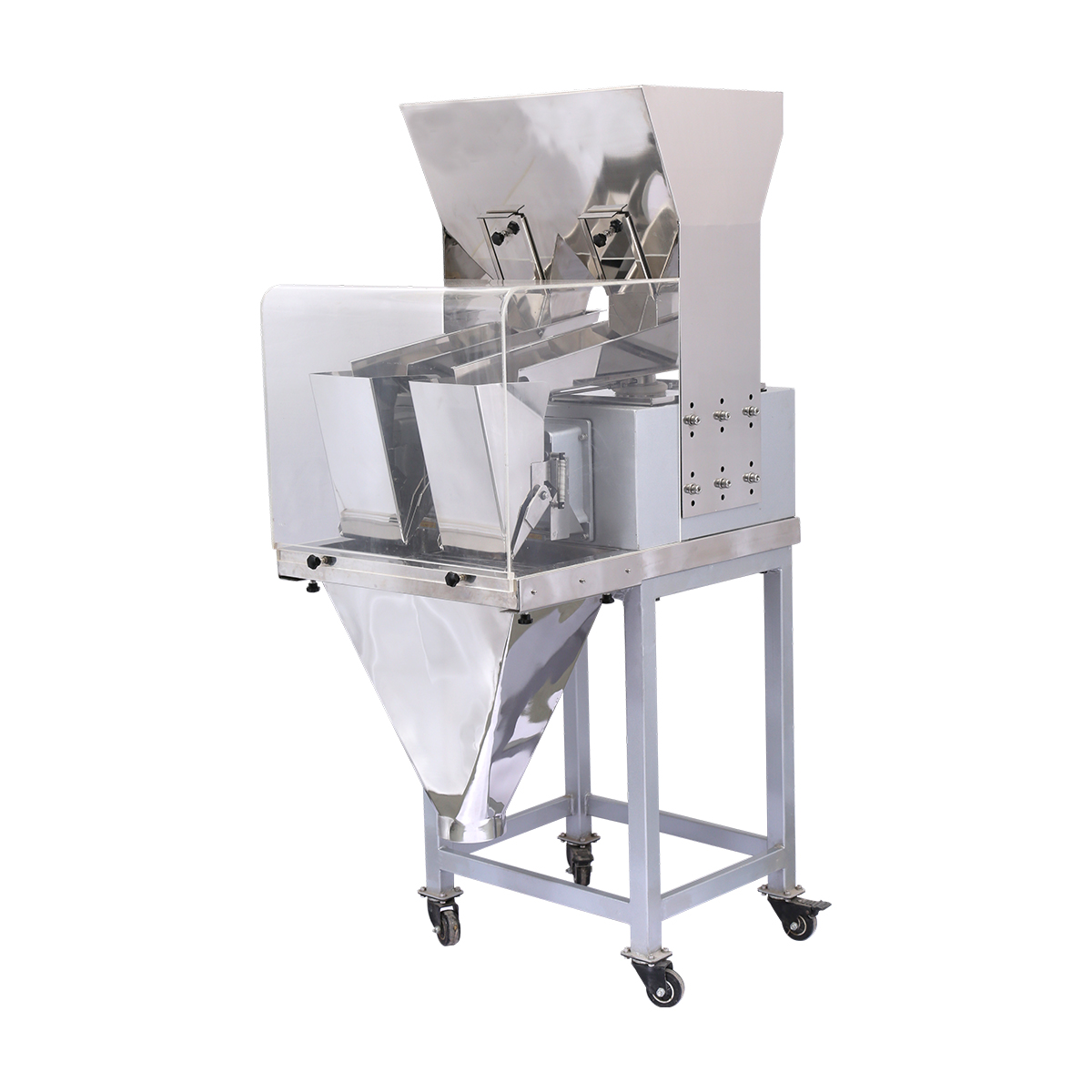

2 Head Linear Filling machines are designed to distribute products in equal weights from a lot.
The product is fitted in a hopper and system flows and checks the weight of the product in a
measuring pan once predefined weigh is collected in pan it drops them to output device on request.
This enables swift distribution and reduces the manual efforts.
Technical Specifications
| Brand | Fitpack |
| Weight Range | 200-400 gms |
| Type of pouch sealing | Centre sealing |
| Speed | upto 10 pouch /min |
| Operational Panel | 7 inch touch screen |
| Accuracy | +/2 gms. |
| Pre-set program | 100 |
| Filling system | 2 head linear weigher. |
| Compressed air required | 5cfm@6bar |
| Electric consumption | 1.5 KW |
| Parts | Crompton or reputed make ; Digital Temperature controller ; Pneumatics : Janatics |
| Attachments included | outfeed conveyor; batch cutter |
| Important | Compressor/compressed air to be provided by customer. |
| Sealing System | Top, bottom and centre sealing thru Pneumatic cylinders. |
| Control system | MCU |
