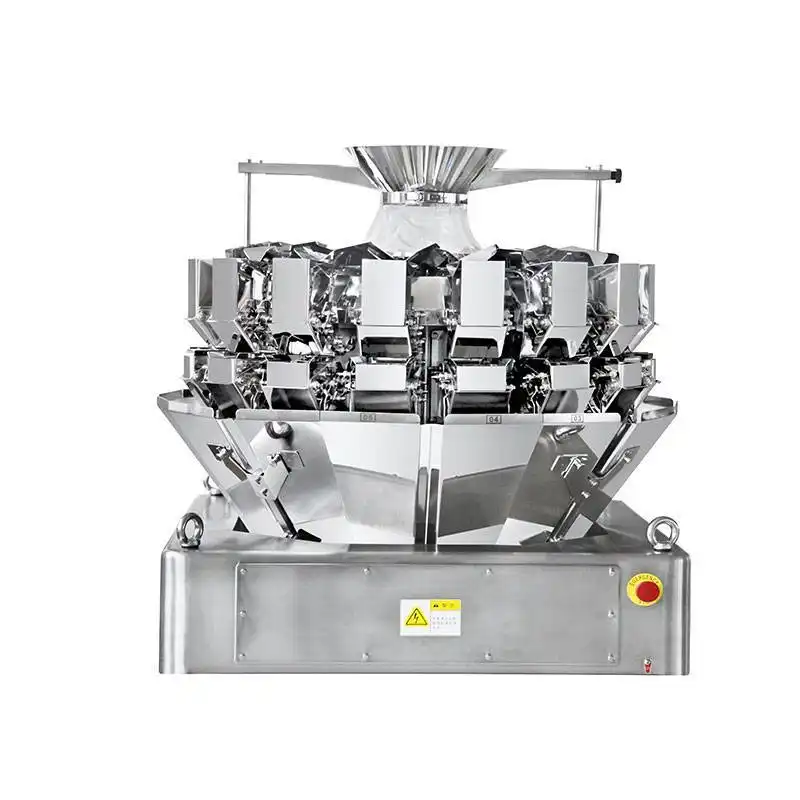

16 Heads High Speed Multihead Weigher is suitable for weighing small granules such as seeds, tea, coffee beans etc.

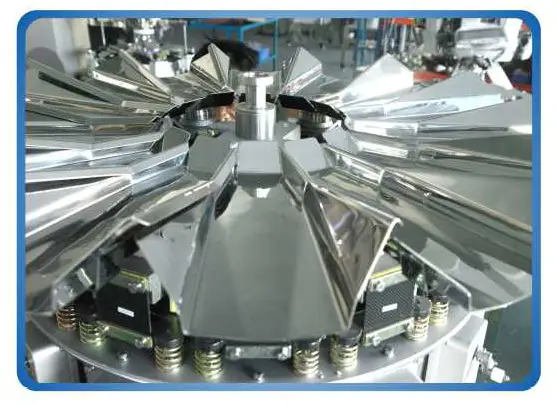

16 head high-speed multihead weigher with double-deck feeding chutes and double high-speed aggregate hoppers alternate feeding, which greatly increases the speed of weighing materials. The maximum weighing speed can reach 180 packs per minute. It is suitable for particulate materials with good fluidity, such as tea, Chinese herbal medicine, monosodium glutamate, chicken essence and so on.
Technical Specifications
| Model | JW-A16 |
| Identify Code | A16-2-7 |
| Weighing Range | 10-200g |
| Accuracy | x(0.5) |
| Max speed | 180P/M |
| Hopper Volume | 0.5L |
| Control Panel | 10.4” Touch Screen |
| Options | Dimple Plate/Timing Hopper/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 220V/1500W/50Hz//60Hz/10A |
| Packing Dimensions (mm) | 1250(L)*1070(W)*960(H) |
| Gross Weight | 300kg |
