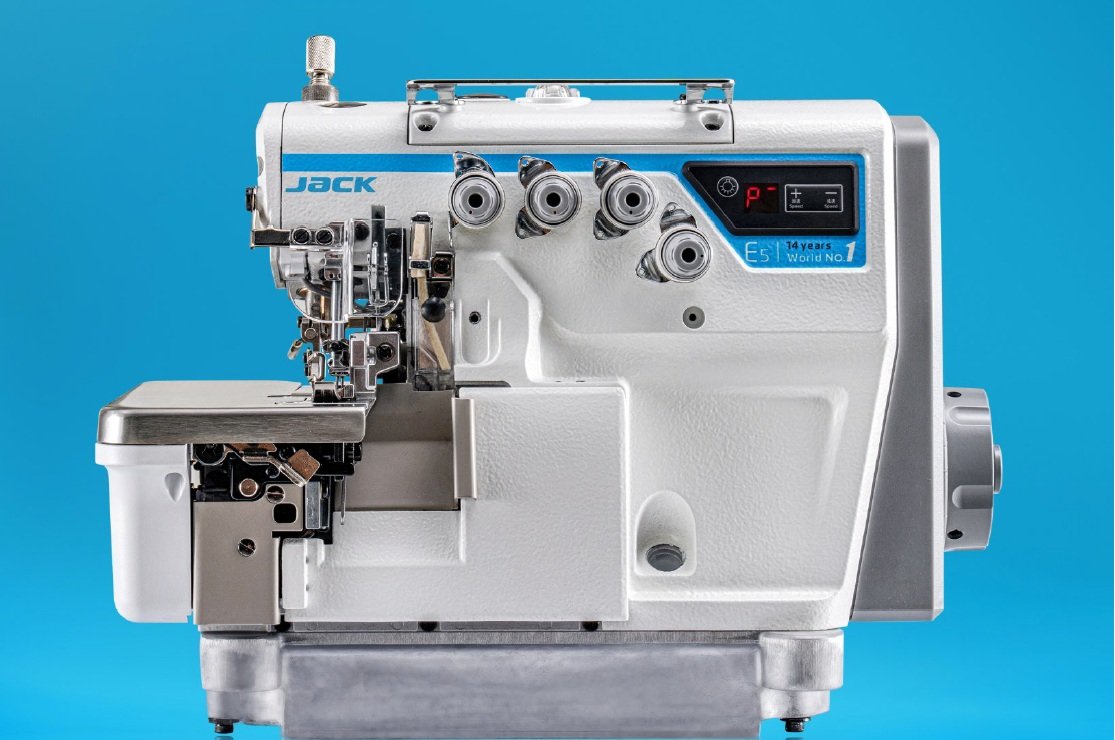

The Jack E5 Thickness-Adjustable Direct-Drive Overlock Sewing Machine is a high-speed, heavy-duty industrial overlock machine engineered to handle a wide range of fabric weights. Featuring a patented M/H thickness-adjustment system, it allows operators to switch effortlessly between light/medium fabrics (M-type) and heavy materials (H-type) to meet diverse order requirements. Built with an integrated direct-drive motor, an upgraded long-stroke needle mechanism, and an ultra-wide operating voltage tolerance (90V–295V), the Jack E5 delivers up to 5,500 S.P.M. with zero skipped stitches or thread breakage—even over thick cross-seams and heavy denim.
Key Features
Patented Light & Heavy Thickness Adjustment (M/H Switch)
Upgraded Seam & Stroke Power
Ultra-Wide Operating Voltage Range (90V–295V)
High-Speed 5,500 S.P.M. Production
Direct Drive Energy-Saving Motor
Versatile Subclass Availability
Technical Specifications
| Operation Type: Direct Drive Power-Saving Industrial Overlock |
| Max Stitch Length: 4 mm – 5 mm (Depending on subclass configuration) |
| Max Tack Stitches: Continuous High-Speed Overlock Seaming / Edge Trimming |
| Needle System: DCx27 / B27 (#9 to #19 depending on 3-thread, 4-thread, 5-thread, or 6-thread model) |
| Max Speed: Up to 5,500 S.P.M. (Stitches Per Minute) |
| Application: Light, Medium, to Heavy Duty (Mesh, Knits, Shirts, Jeans, Towels, Denim) |
| Bed Type: Flat Bed Industrial Overlock / Serger Head |
| Hook Type: High-Precision Upper & Lower Looper Mechanism |

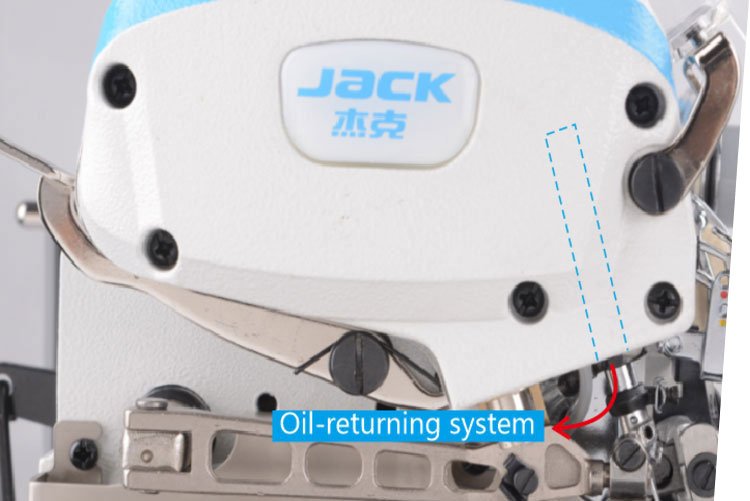

| Lubrication: Automatic Centralized Oil Lubrication System |
