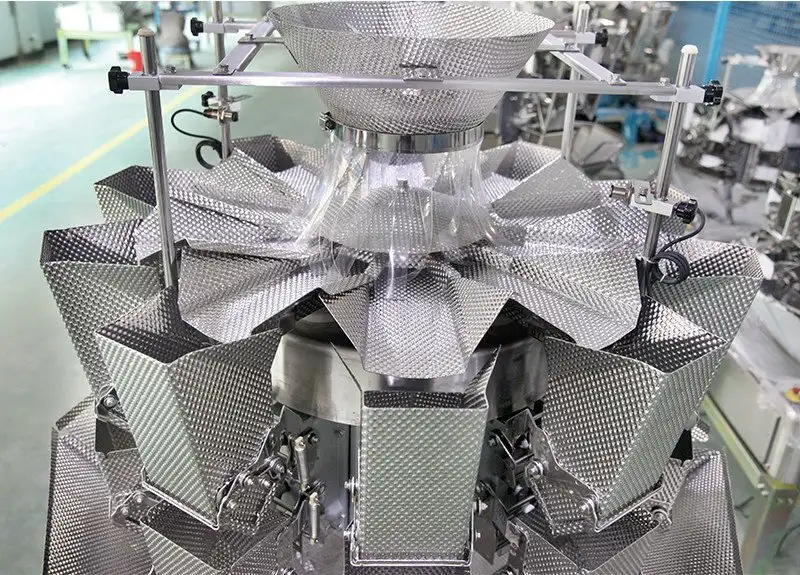

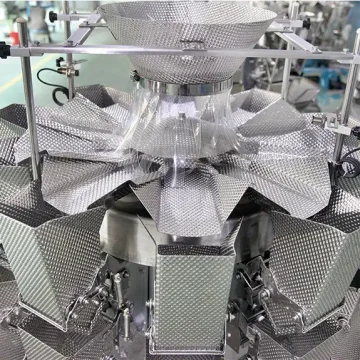

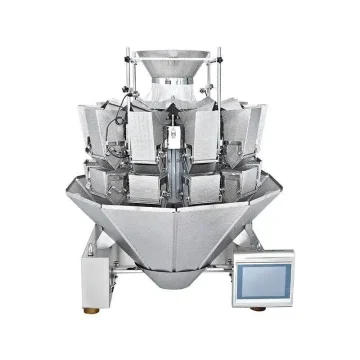

Multihead Weigher for Frozen Food Weighing

Scope of Application

Multihead Weigher for Frozen Food is suitable for weighing frozen foods, such as frozen fishes, fruit, frozen dumplings, rice dumplings, etc.

Features:

  1. High-precision, high-standard special load cell, resolution up to 2 decimal places.
  2. Program recovery function can reduce operation failures, Support multi-segment weight calibration.
  3. No products auto pause function can improve weighing stability and accuracy.
Read More

Multihead Weigher for Frozen Food Weighing

Scope of Application

Multihead Weigher for Frozen Food is suitable for weighing frozen foods, such as frozen fishes, fruit, frozen dumplings, rice dumplings, etc.

Features:

  1. High-precision, high-standard special load cell, resolution up to 2 decimal places.
  2. Program recovery function can reduce operation failures, Support multi-segment weight calibration.
  3. No products auto pause function can improve weighing stability and accuracy.[readmore]
  4. 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
  5. Linear amplitude can be adjusted independently, can make the feeding more uniform.
  6. 15 languages available for global markets.

Mechanical  Character:

  1. IP65 cabinet design, dimple plate for food contact parts.
  2. Air pressure system built in cabinet prevents the electronic components from damage because of humidity.
  3. Uniform design standards contribute to better interchangeability for spare parts.
  4. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing;
  5. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.

Table of Product

Model JW-A10 JW-A14
Identify Code  A10-1-7 A14-1-7
Weighing Range 10-1000g 10-1500g
Accuracy X(0.5) X(0.5)
Max Speed 65P/M  120P/M
Hopper Volume 1.6L/2.5L 1.6L/2.5L
Control Panel  7'' Touch Screen  7'' Touch Screen
 Options Dimple Plate/Timing Hopper/Printer/ Reject Device Dimple Plate/Timing Hopper/Printer/ Reject Device
Driving System  Step Motor  490kg
Power Requirement  220V/1000W/ 50/60Hz /10A 220V/1500W/ 50/60Hz /12A
Packaging Dimension (mm)  1620(L)X1100(W)X1110(H)  1750(L)X1130(W)X1200(H)
Gross Weight 380kg  490kg
