Scope of Application

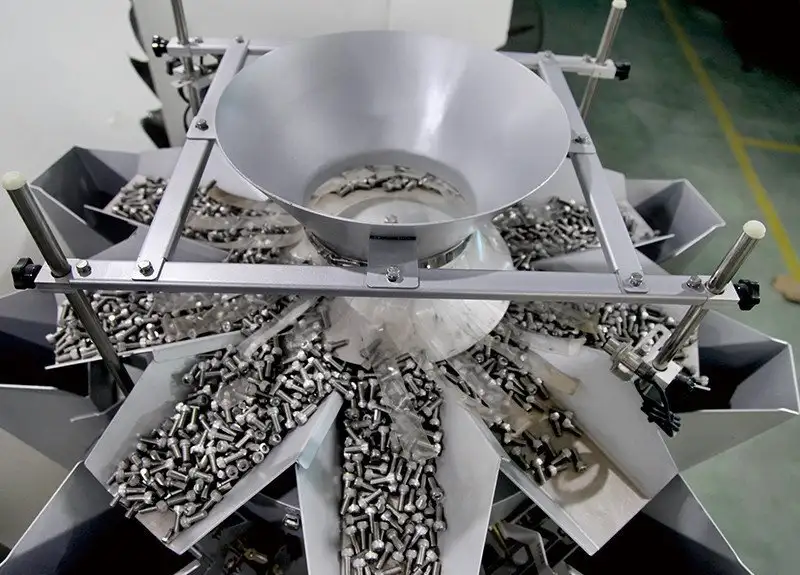

Hardware Multihead Weigher is suitable for weighing small hardware’s and plastic parts, length is less than 80mm, single piece weight is less than 100g.
Features:
Technical Specifications
| Model | JW-A10 | JW-A14 |
| Identify Code | A10-1-15 | A14-1-15 |
| Weighing Range | 10-2000g | 10-3000g |
| Accuracy | X(0.5) | X(0.5) |
| Max Speed | 65P/M | 120P/M |
| Hopper Volume | 1.6L | 1.6L |
| Control Panel | 7'' Touch Screen | 7'' Touch Screen |
| Options | Dimple Plate/Timing Hopper/Reject Device | 1.6L |
| Driving System | Step Motor | Step Motor |
| Power Requirement | 220V/1000W/50Hz/60Hz/10A | 220V/1000W/50Hz/60Hz/10A |
| Packaging Dimension (mm) | 1620（L）X1100(W)X1420(H) | 1620（L）X1100(W)X1420(H) |
| Gross Weight | 380kg | 480kg |
