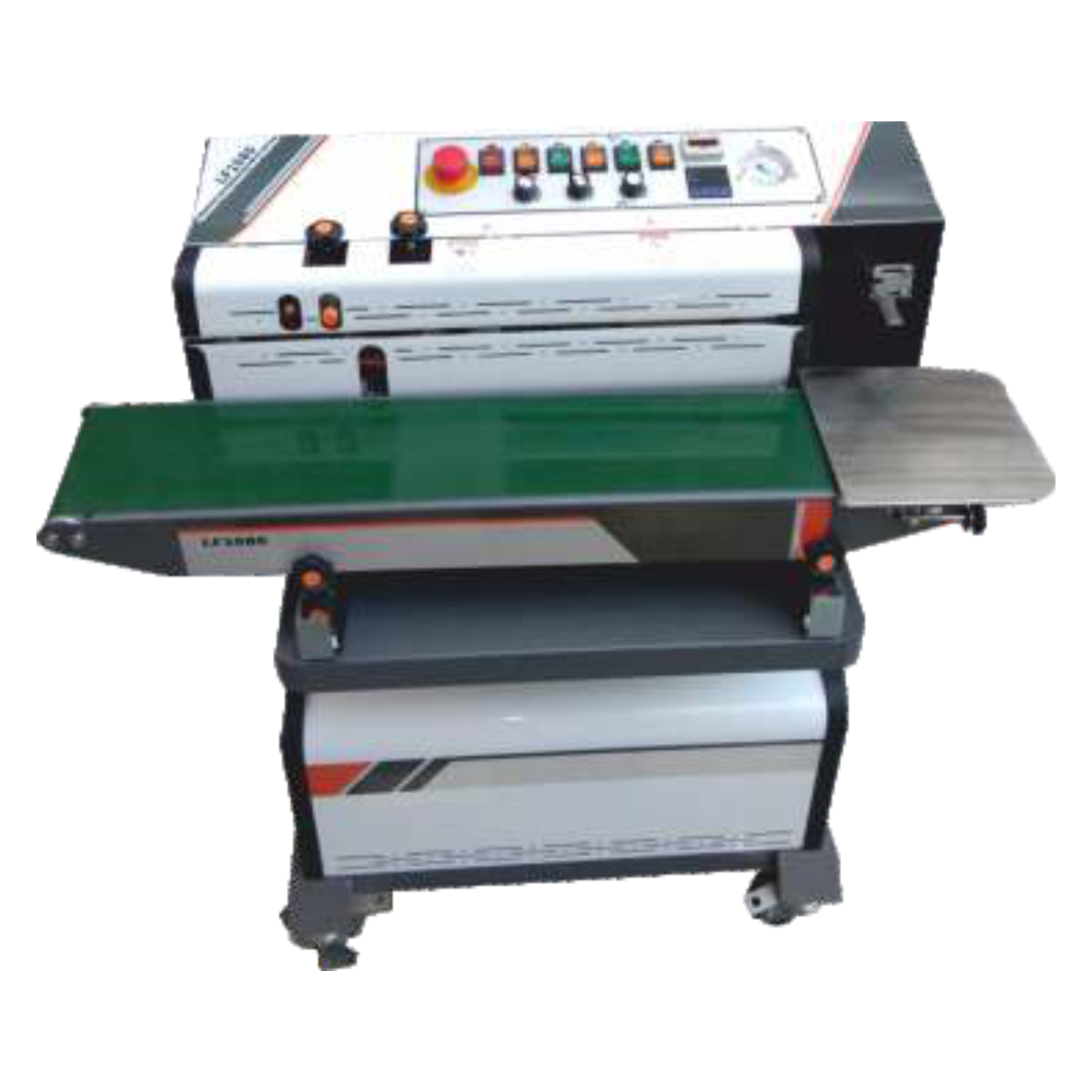

FITPACK offers a Continuous Band Sealer with Nitrogen flushing arrangement for Agri and Food industries. The presence of oxygen introduces moisture which can deteriorate the food quality in the sealed pouches. Nitrogen flushing is a Preservation method used to protect packaged foods such as wafers, spices, coffee beans, nuts, rice cakes, snack crackers and chips. Mechanism is to flush pouches with Nitrogen gas which will push out the air from and fill them with Nitrogen before the belt seals pouches giving air free seal. We offer Nitrogen Flushing arrangement in both imported (NFSI-105) and Indian (CBS-30N) models as per the requirement of the application. A pre-filled pouched are entered manually in to the moving continuous gripper belt assembly such that the nozzle of the nitrogen flushing tube is inside the pouch.
The air will be pulled out due to the heavy nitrogen gas and the gripper belts will immediate hold the pouches without allowing the gas to escape. Air tight sealing is achieved by heat conducted through Teflon coated gripper belts. The hot Gripper belts carry the pouch and cause localizes melting of pouch material when passed through the heated section. Perfect sealing is achieved by metallic and rubber pressure rollers. The pouch carrying conveyor and gripper belts are driven by common drive resulting in synchronous movements of pouches thus resulting in a smooth sealing. Speed can be controlled and monitored by the variable frequency drive to help proper sealing. They are quite easy to operate and highly demanded for their robust construction, consistency and long lasting nature.
Specification and Feature
- Indian and Imported model
- Variable Frequency drive for smooth operation
- Teflon belt for seamless sealing
- In built cooling mechanism for quick seal
- Suitable for various pouches with varied thickness
