32 Head Mixing Weigher 0.5L

32 Head Mixing Multihead Weigher is suitable for weighing small granules such as seeds, tea, coffee beans etc.

Features:
  1. Can use for 2 in 1, 3 in 1 and 4 in 1 mixing products.
  2. More hopper to combination, higher accuracy
  3. The weight of the mixing can be automatically compensated by the last products.
  4. High accuracy and tailored load cell.
  5. Intelligent alarm diagnosis.
  6. High speed stagger dump function.
  7. New Modular and CAN bus technology, more efficient and stable.
  8. Modbus Industry communication protocol.
Read More

32 Head Mixing Weigher 0.5L

32 Head Mixing Multihead Weigher is suitable for weighing small granules such as seeds, tea, coffee beans etc.

Features:
  1. Can use for 2 in 1, 3 in 1 and 4 in 1 mixing products.
  2. More hopper to combination, higher accuracy
  3. The weight of the mixing can be automatically compensated by the last products.
  4. High accuracy and tailored load cell.
  5. Intelligent alarm diagnosis.
  6. High speed stagger dump function.
  7. New Modular and CAN bus technology, more efficient and stable.
  8. Modbus Industry communication protocol.[readmore]

Mechanical Character:

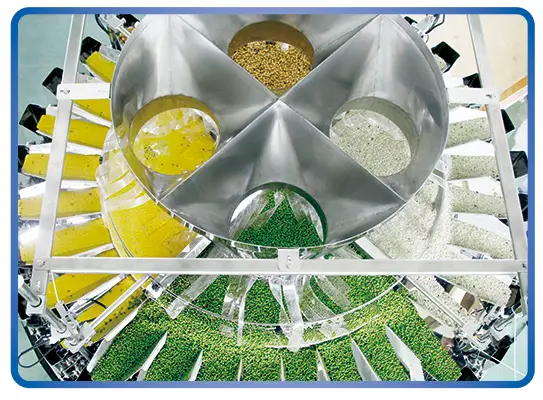

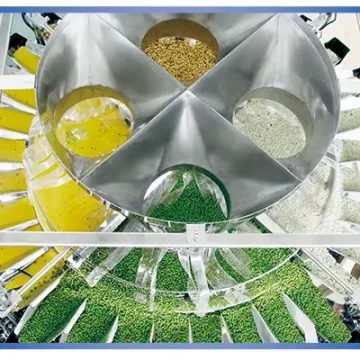

  1. Upper storage funnel is divided to weight two different products.
  2. Separate main vibrator, control the thickness of product independently.
  3. Integral machine frame and machine cabinet contributes to more stability and higher accuracy.
  4. Uniform design standards, and mould processing, contribute to better interchangeability for spare parts.
  5. Stable actuator design reduces the mechanical vibration and improves the load cell value accuracy.

Table of Product

Model JW - A 32
Identify Code A32-2-1
Weighing Range 5-240g
Accuracy X(0.5)
Max Speed 60P/M
Hopper Volume 0.5L
Control Panel 10.1” Touch Screen
Options Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System Step Motor
Power Requirement 220V/2500W/ 50/60Hz /15A
Packing Dimension(mm) 2100(L)x1480(W)x1130(H)
Gross Weight 600kg
