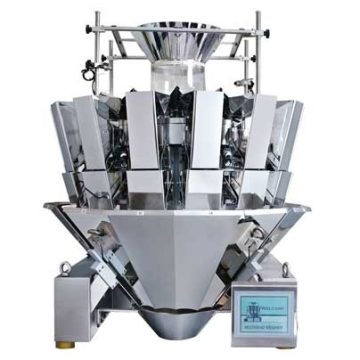

14 Head Multi Weigher for 10 gm to 1000 gm

Application:

It is suitable for weighing leisure foods such as candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins etc. and big shell nuts, hard-wares, dried fruits, frozen foods, snack foods, meatballs and so on.

Features:

  1. Adopt high precision and high accurate loadcell of famous brand, resolution is improved up to 2 decimal;
Read More

14 Head Multi Weigher for 10 gm to 1000 gm

Application:

It is suitable for weighing leisure foods such as candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins etc. and big shell nuts, hard-wares, dried fruits, frozen foods, snack foods, meatballs and so on.

Features:

  1. Adopt high precision and high accurate loadcell of famous brand, resolution is improved up to 2 decimal;  [readmore]
  2. Program recovery function can reduce operation failures and support multi-segment weight calibration.
  3. No products auto pause function can improve weighing stability and accuracy;
  4. 100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation;
  5. Linear amplitude can be adjusted independently in the running;
  6. Many languages available for global markets.

 Mechanical Character:

  1. 1.6L/2.5L hopper, suitable for all kinds of common standard materials, can be used widely;
  2. Mold making process and uniform design standards contribute to better interchangeability for spare-parts;
  3. Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy;
  4. Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.

Table of Product

Model JW-A12 JW-A14
Identify Code A12-1-1 A14-1-1
Weighing Range 10-1500g 10-1500g
Accuracy X(0.5) X(0.5)
Max Speed 65P/M 120P/M
Hopper Volume 1.6 / 2.5L 1.6 / 2.5L
Control Panel 7''Touch Screen 7''Touch Screen
Options Dimple Plate/Timing Hopper/Printer/Reject Device Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System Step Motor Step Motor
Power Requirement 1700(L)* 1100(W)* 1130(H) 220V/1500W/ 50/60Hz /10A
Packing Dimension (mm) 1700(L)* 1100(W)* 1130(H) 1700(L)* 1100(W)* 1265(H)
Gross Weight 430kg 490kg

Installation/Operation Videos
